From the Vault: Vulnerability of German Panzer III, IV and VI

Figure 39The following charts are taken from the document Terminal ballistic data, volume II, artillery fire released August 1944.  These charts (pages 31 -51 in the report) show what the US Army thought at the time regarding the effectiveness of their tank and anti-tank guns versus German armor (Panzer III, IV and Tiger I).  It is worth noting that according to the report, this data was gained by firing US projectiles at captured German tanks.  They note that “the plates in many cases were completely defeated and whole sections dropped out of the tank.  This was caused by failure of welds and cracking and spalling of the plate.  Thus, many plates failed under the impact shock of the hit, as well as from actual penetration.”

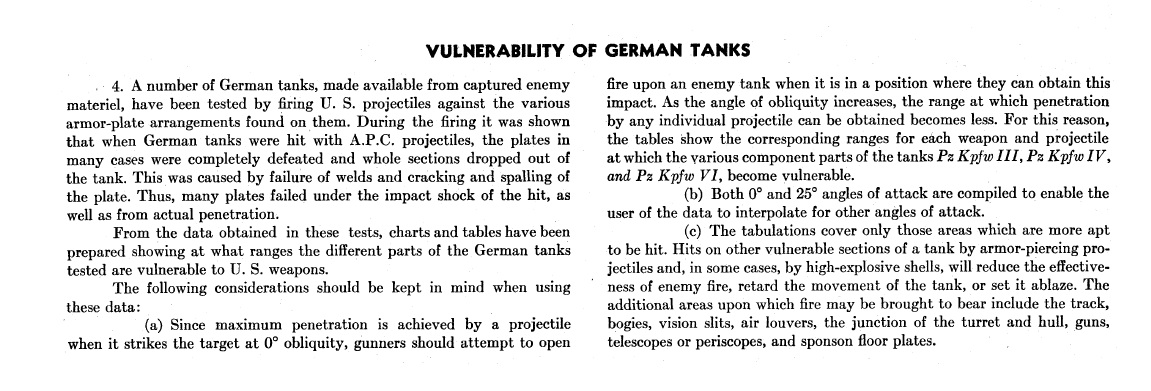

Vulnerability of German tanks text

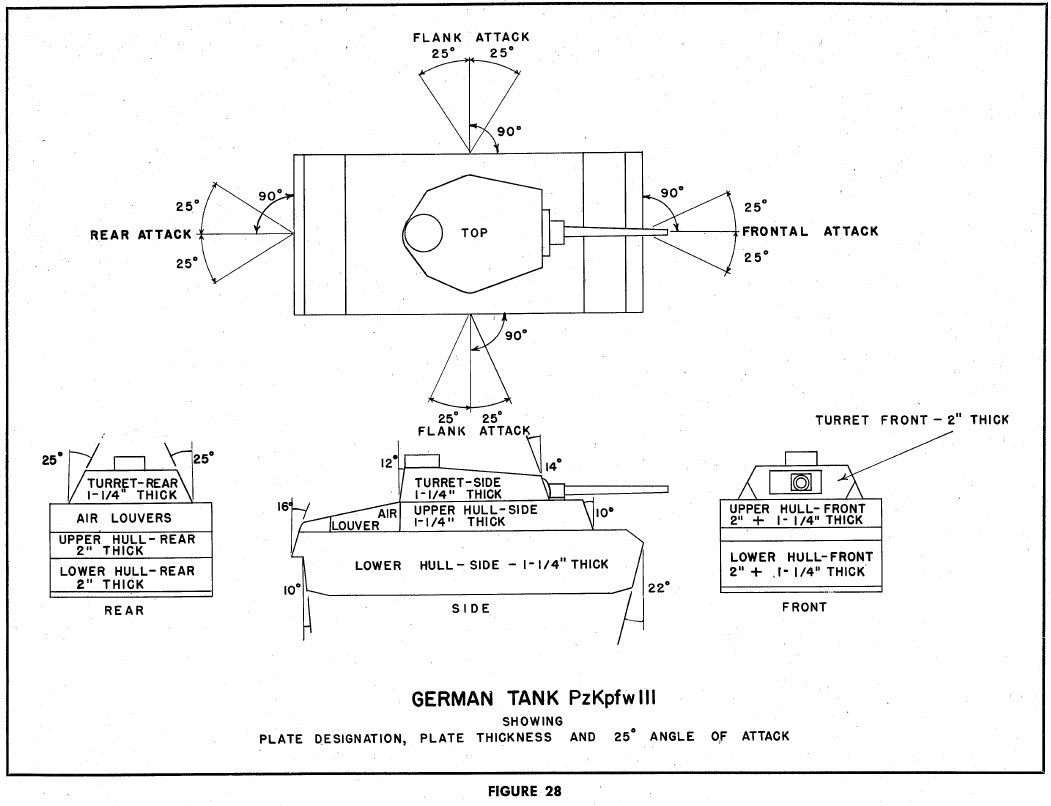

Panzer III

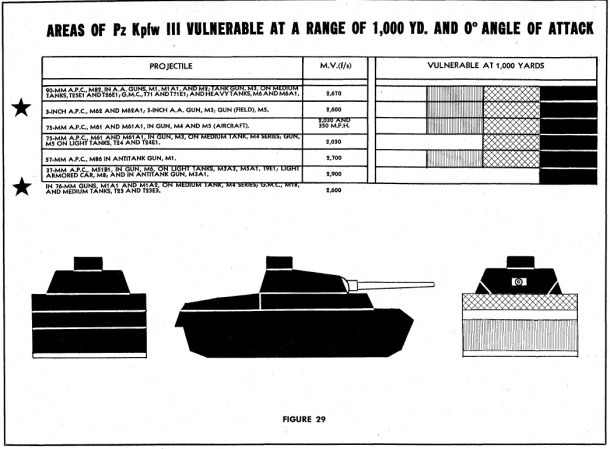

Figure 29

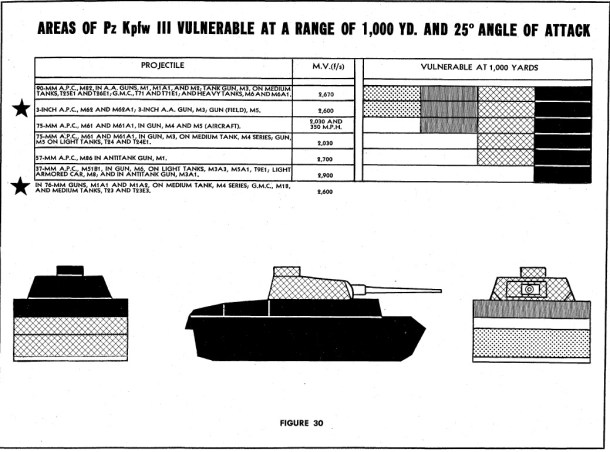

Figure 30

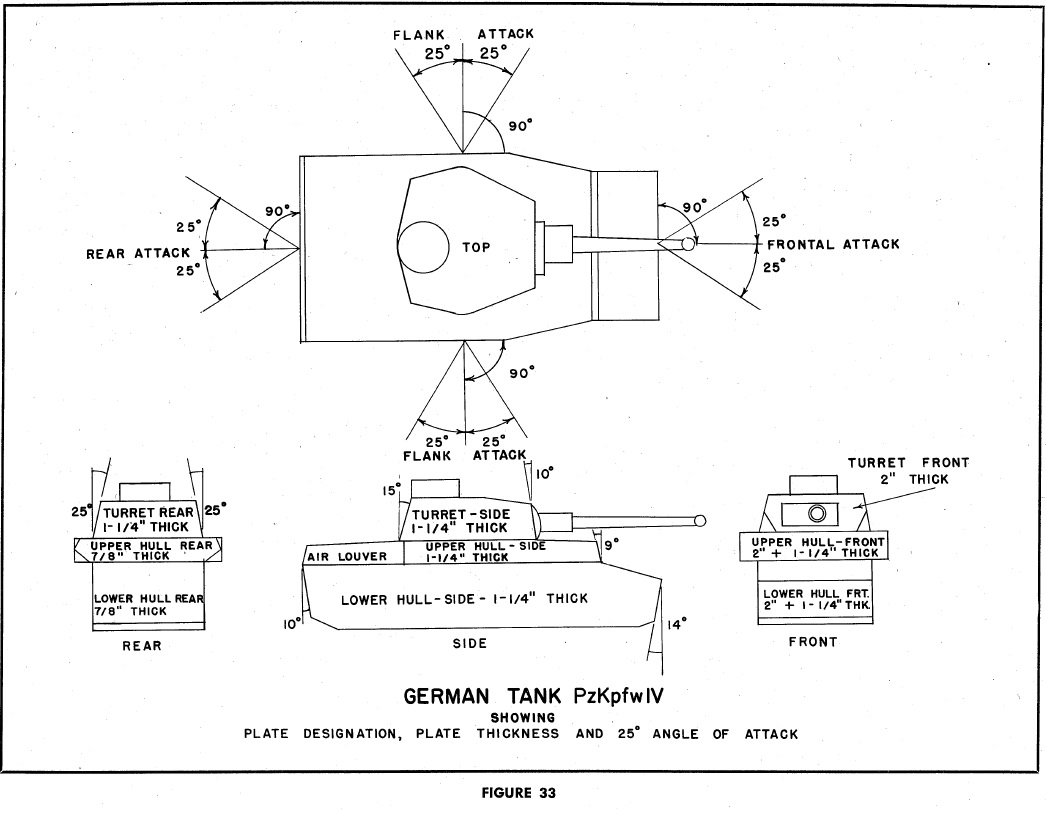

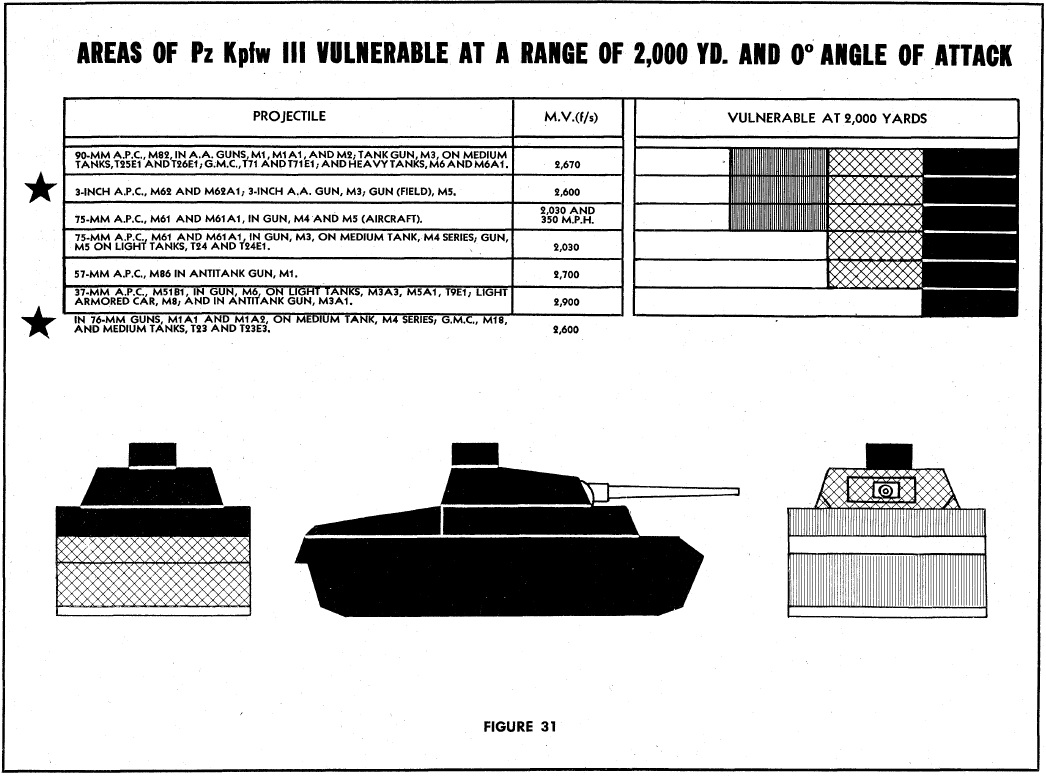

Figure 31

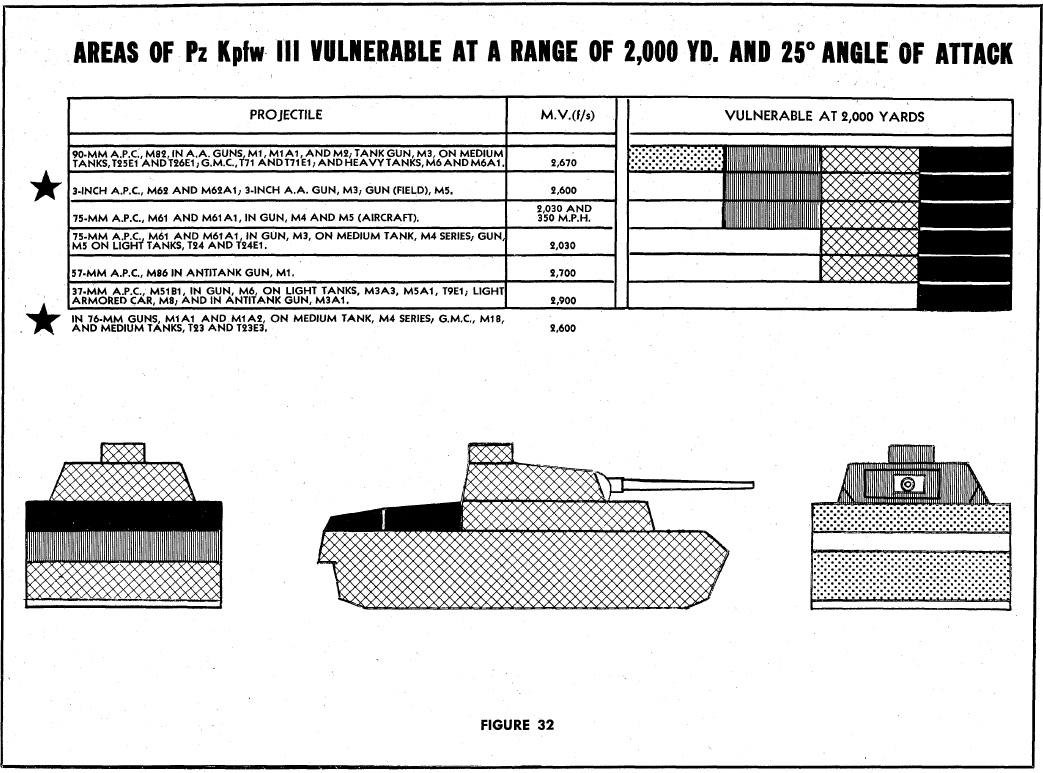

Figure 32

Table 1 Pz III

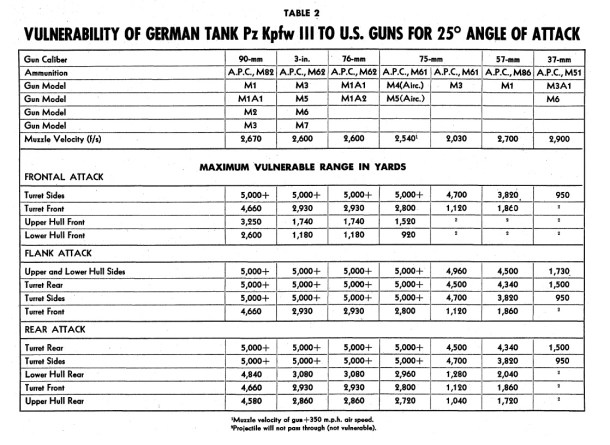

Table 2 Pz III

Figure 33

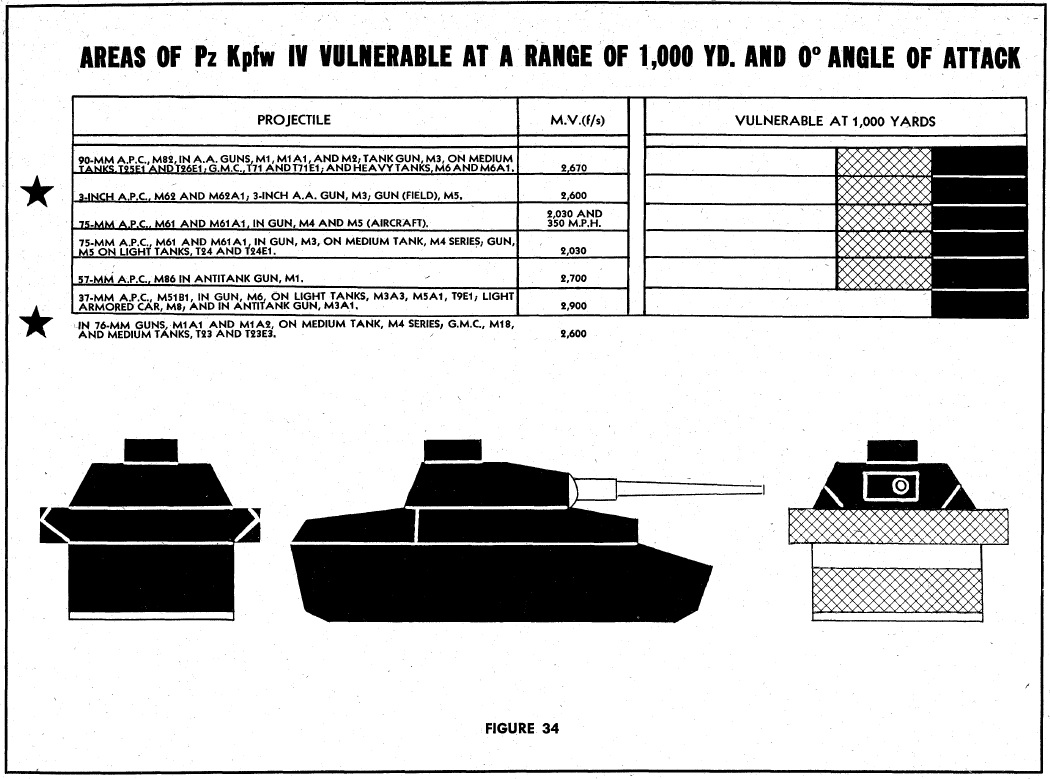

Figure 34

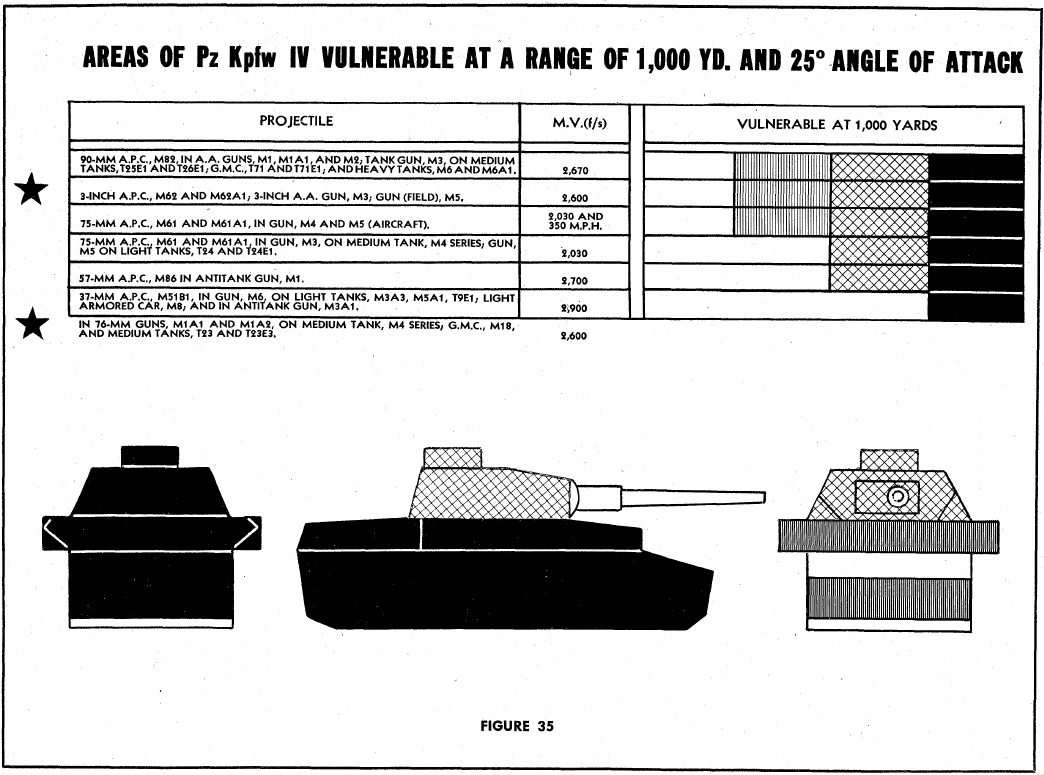

Figure 35

Figure 36

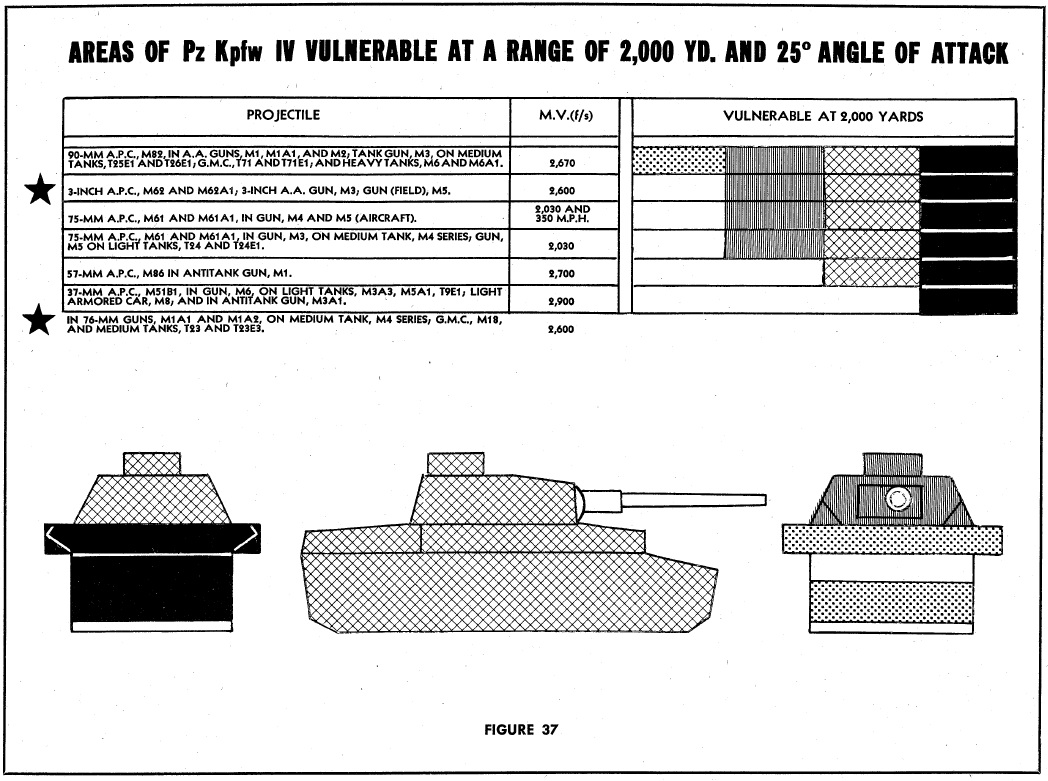

Figure 37

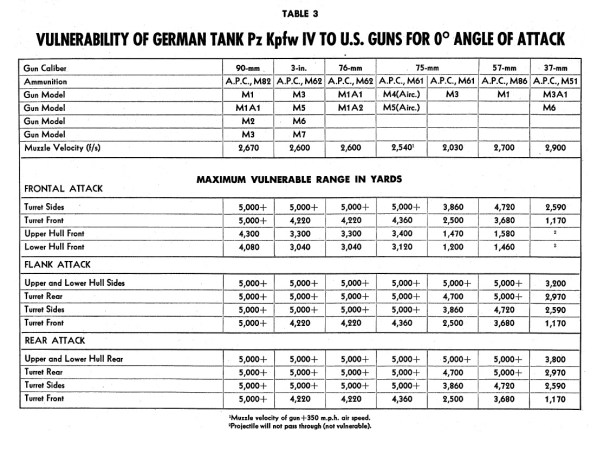

table 3

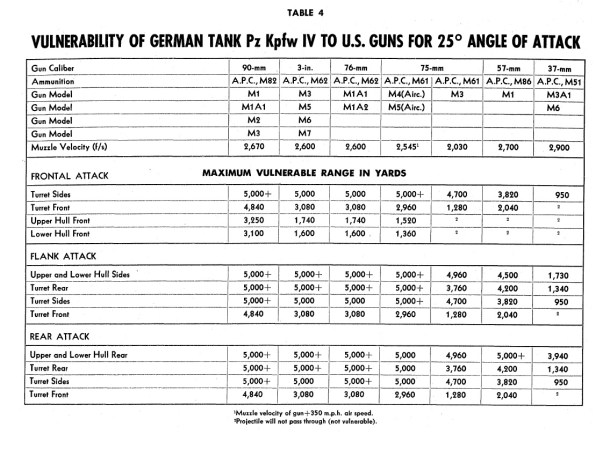

table 4

Figure 38

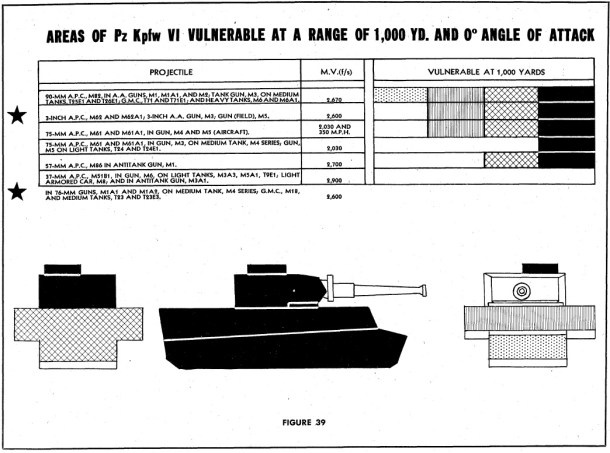

Figure 39

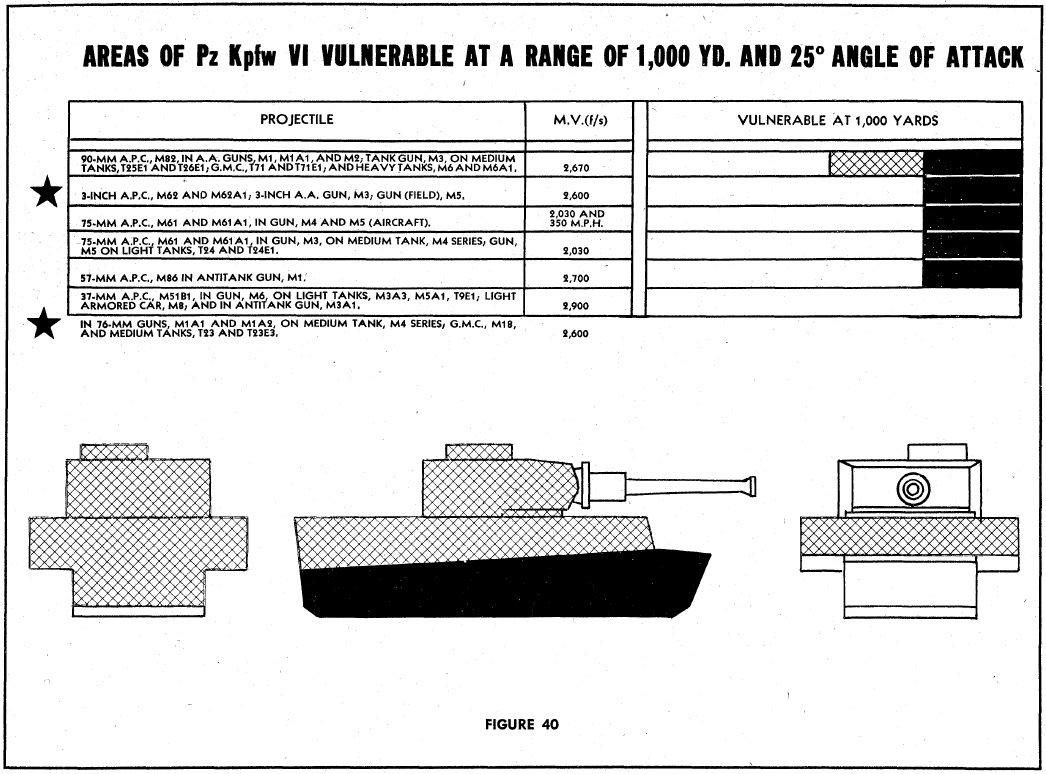

Figure 40

Figure 41

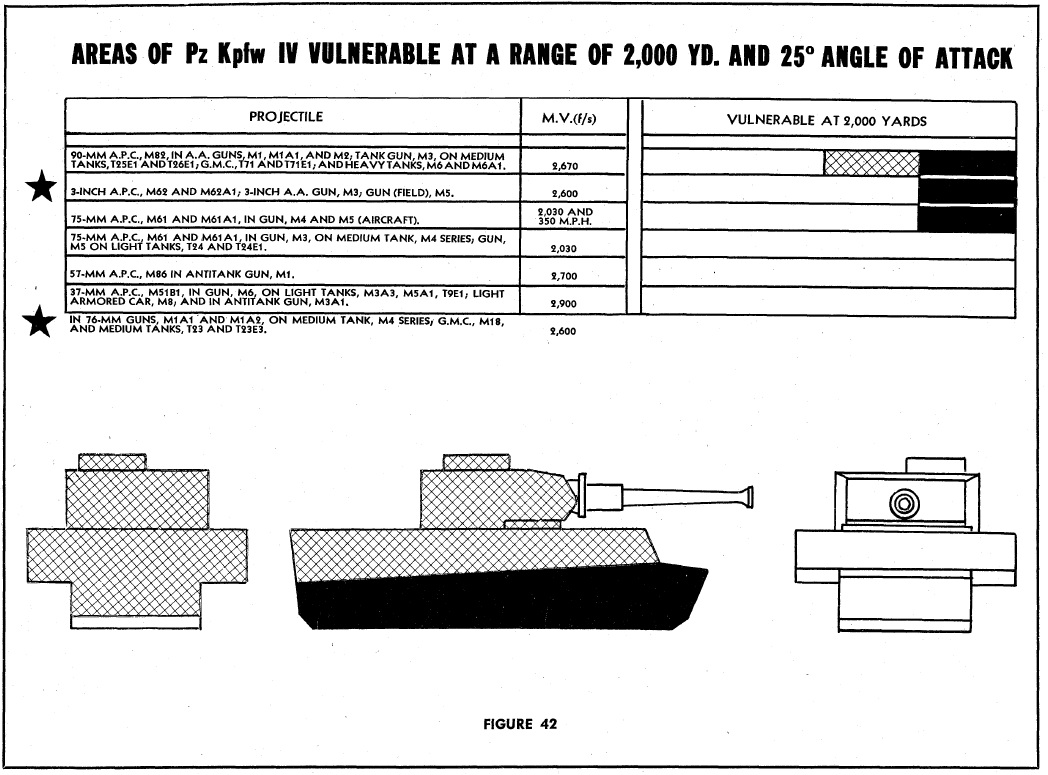

Figure 42

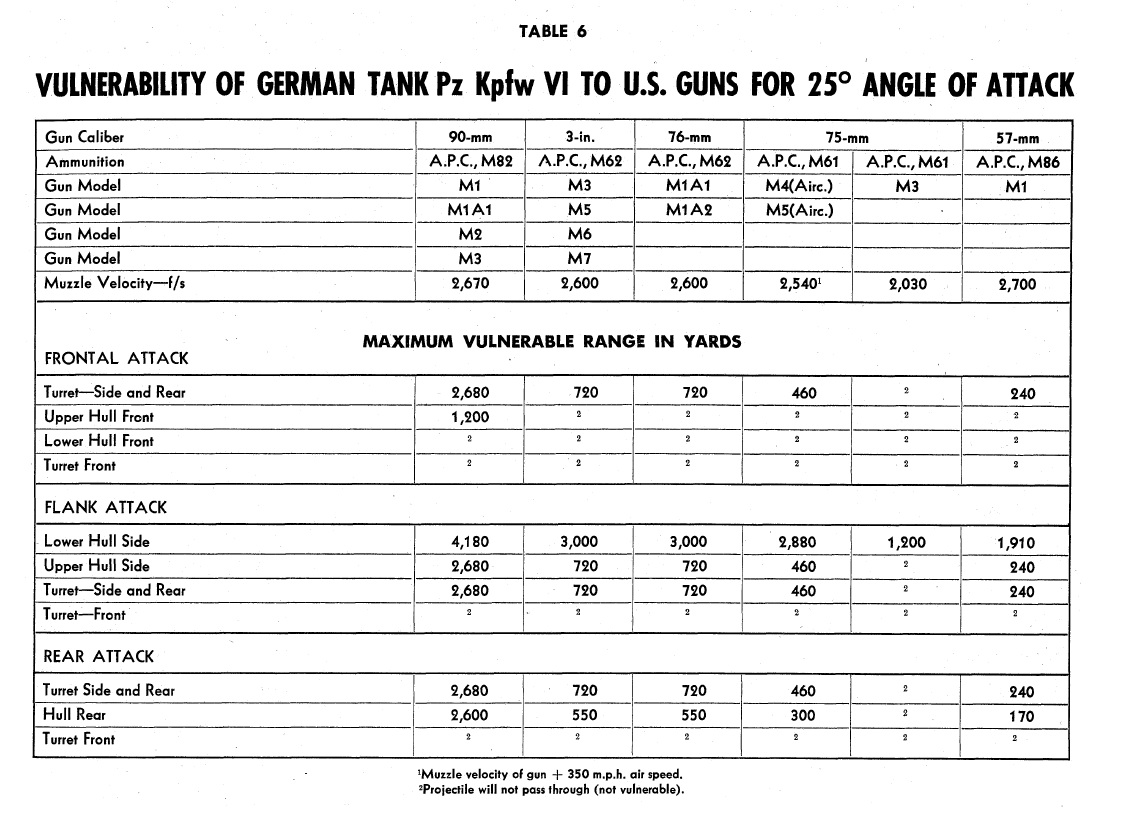

Figure 5

Figure 6
